Radio Bridge (DY-CDS6IPMS X 2 / Transmitter/Receiver) Built-in Internal 16 dBi MIMO antenna (dual polarization HV); operating angle: H-36 °, V-15 °. point-to-point, point-to-multipoint, streaming management 4K, 5MP, HD1080p, HD720p, PAL/NTSC, up to 25Mbps range 2Kms, LAN input/output 2 x RJ45 10/100 Base-TX, 64/128/152-bit encryption WEP, WPA, WPA-PSK, WPA2-PSK, IP 65, dimension 110 x 255 x 47 [mm],Power supply supplied (15V DC, 0.8A PoE) Power consumption 8,5W max, operating temperature -20°C ÷ 50°C

Metal base for DY-VD1080P20M

3-axis mini dome, 1/2.8" SONY 4K MSTAR MC328Q+IMX415, 20fps@8MP(3840*2160) 30fps@6MP/5MP, HDR, F2,8-8 mm autofocus, H265 / H264, WDR, POE and 12VDC, IR range 30M (4PCS 28μ SMD Array IR LEDs), IP66, masking zones, ONVIF.

IP 2MP motorized PTZ mini dome, motorized vertical and horizontal rotation, 4X optical zoom with motorized autofocus lens 2.8~12mm, 1/3" SONY IMX307 STARLIGHT CMOS Sensor 1080P, Low Illumination, ICR, 3D NR, Weatherproof IP66, IR LEDs: 35M range, OSD Menu, DC12V and POE+ power supply, wall bracket included

Digital network recorder POE with license plate recognition function, (compatible Camera DY-B2ANPR-xx), for 4 IP cameras ONVIF H265, 1080P @50 ips. (cameras supported up to 8 Megapixels H265, maximum data rate 40Mbps), 1 x audio voice IN, 1 x audio voice NVR OUT, 2 x USB 2.0 port (backup and mouse), 1 x internal DDSATA capacity of 8TB Max. 1 x HDMI output, 1 x VGA output, delivered without HDD, Conforms to the decree of 03 August 2007.

3-axis ext bulb, 1/2.8" SONY 2MP CMOS, 1080P@50fps in HFR mode (license plate reading and capture). F2.8-12mm autofocus, H265 / H264 Low Stream, capture up to 70Km/h, White list 10000 plates, WDR, POE, IR range 50/70M, IP66, masking zones, ONVIF, SD slot (128Gb max.), ( Video tampering detection, scene change detection, license plate recognition...)

3 axis int/ext mini dome, 1/3" SONY 4MP CMOS, 4MP / 3MP /1080P@25fps, F2,8 mm (103°), H265 / H264 Low stream, WDR, POE, IR range 10M, IP67, IK10, SD slot (128GB max), Audio IN/OUT, masking zones, ONVIF,(IVA cross lines, object loss, object detection, crowd density...)

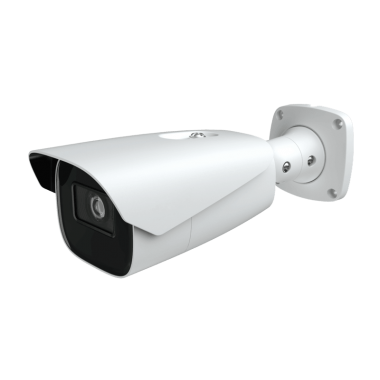

Bullet 3 axis, 1/1,8'' 4K, Smart H.265 / H.265 +, WDR 120dB, BLC, HLC, demister, 50-70M smart IR, DC-Iris, sensitivity: 0.008 lux @ F1. 2, AGC ON; 0 lux with IR, 2.8-12mm autofocus lens, 1CH alarm IN/OUT, 1CH audio IN/OUT, 1 x RS485, 1 x CVBS OUT, IVA functions: perimeter line crossing, in/out/region intrusion (human/motor vehicle/non-automotive vehicle classification), target counting, crossing line, human/motor vehicle/non-automotive vehicle counting line, exception detection, scene change, video blur and color dominant detection, face detection face detection and face capture. POE and 12VDC, 256GB SD slot, IP67, ONVIF.

Motorized 4.5" Medium speed dome, 1/3" NVP2441 + SONY 307 STARLIGHT CMOS Hybrid AHD / CVI / TVI / CVBS 1080P/960H, ICR, 3D NR, Zoom 20X Optical (f=4.7mm-94mm), ￠42 x 6pcs IR LEDS, IR Range: 60m, Pan Range: 0°~360° Continuous; Tilt Range: 0°~93° Flip, Pan Speed: 45°/sec; Tilt Speed: 30°/sec, Preset: 220, Watchdog: 3 Groups, RS485, Pelco D/P, COC, OSD Menu, DC12V/3A power supply and wall bracket included, Weight: 2.5Kg, IP66.

DVR Hybrid Lite 6CH (4 x BNC, AHD / TVI / CVI and 2 IP) H.265 / H264 Dual Stream, 4K Lite / 5MP Lite / 4MP Lite / 1080P, (40Mbps Max.), 1 x audio input, 1 x audio output, 1 x VGA output, 1 x HDMI output, 1 x BNC output (monitor and spot) delivered without HDD, (1 x 8TB max) 2 x USB ports, 1 x RS485, (compatible with Iphone, Android and MAC) Conforms to the decree of 03 August 2007. Delivered with operating software and integrated webserver.
